Digital Clamp Meter Multimeter High Precision
SPECIFICATIONS

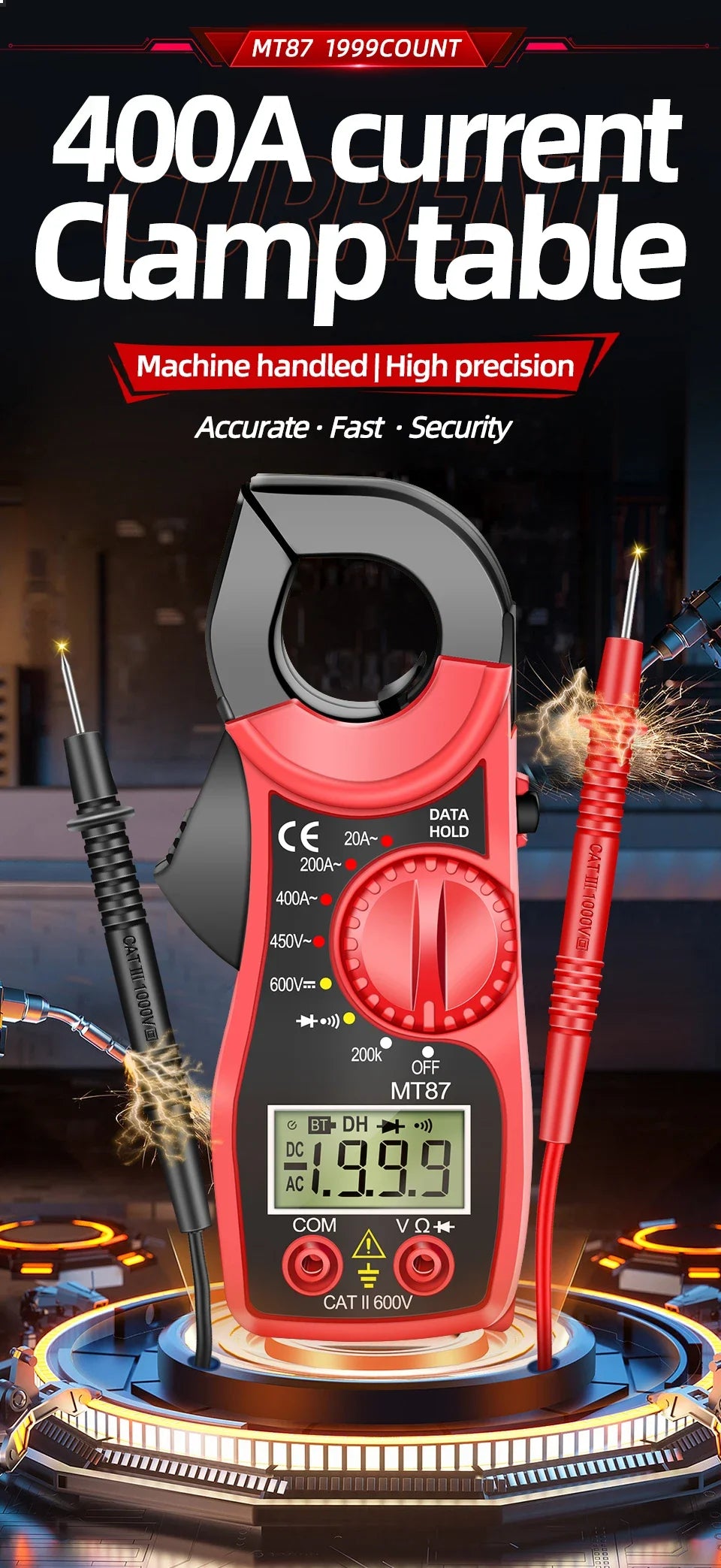

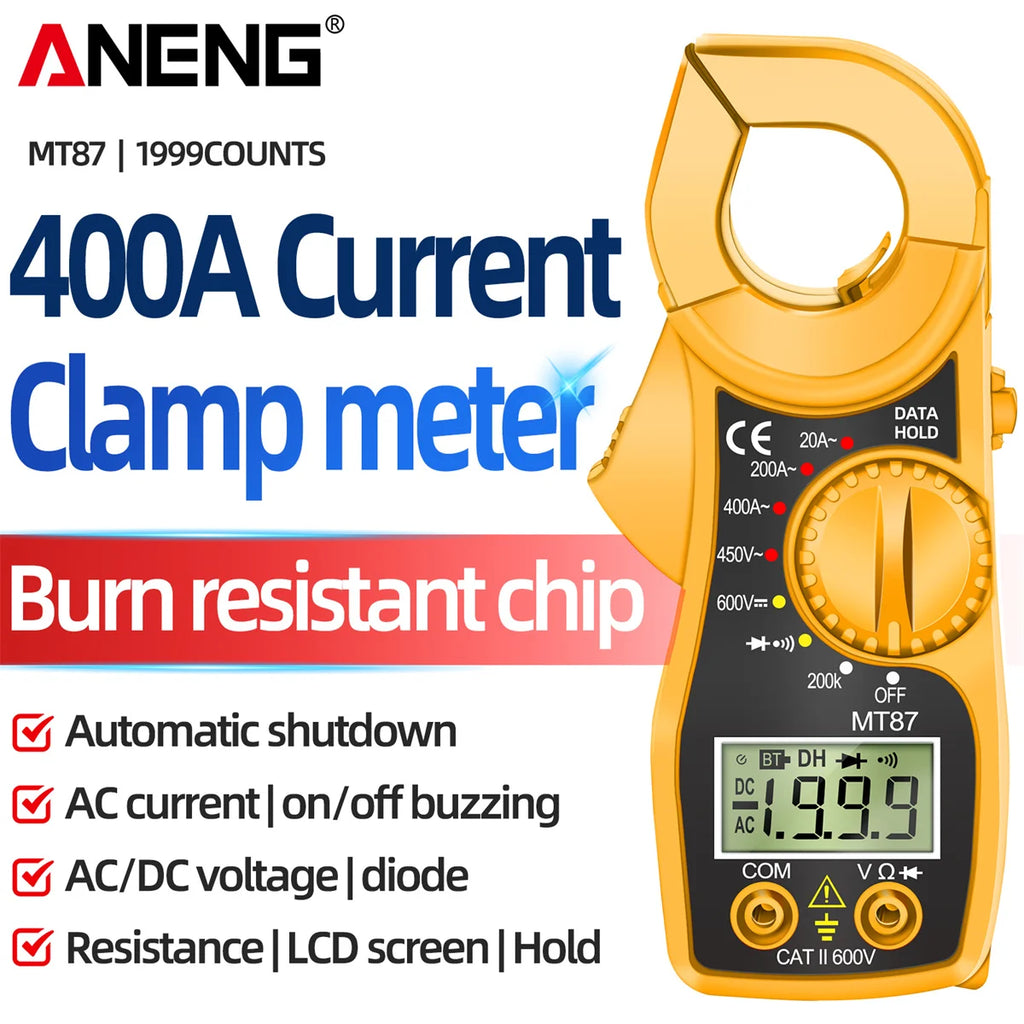

ANENG MT87 Digital Clamp Meter Multimeter 1999 Counts AC Amp Ammeter Voltmeter NCV Ohm High Precision Profesional Tester Tools

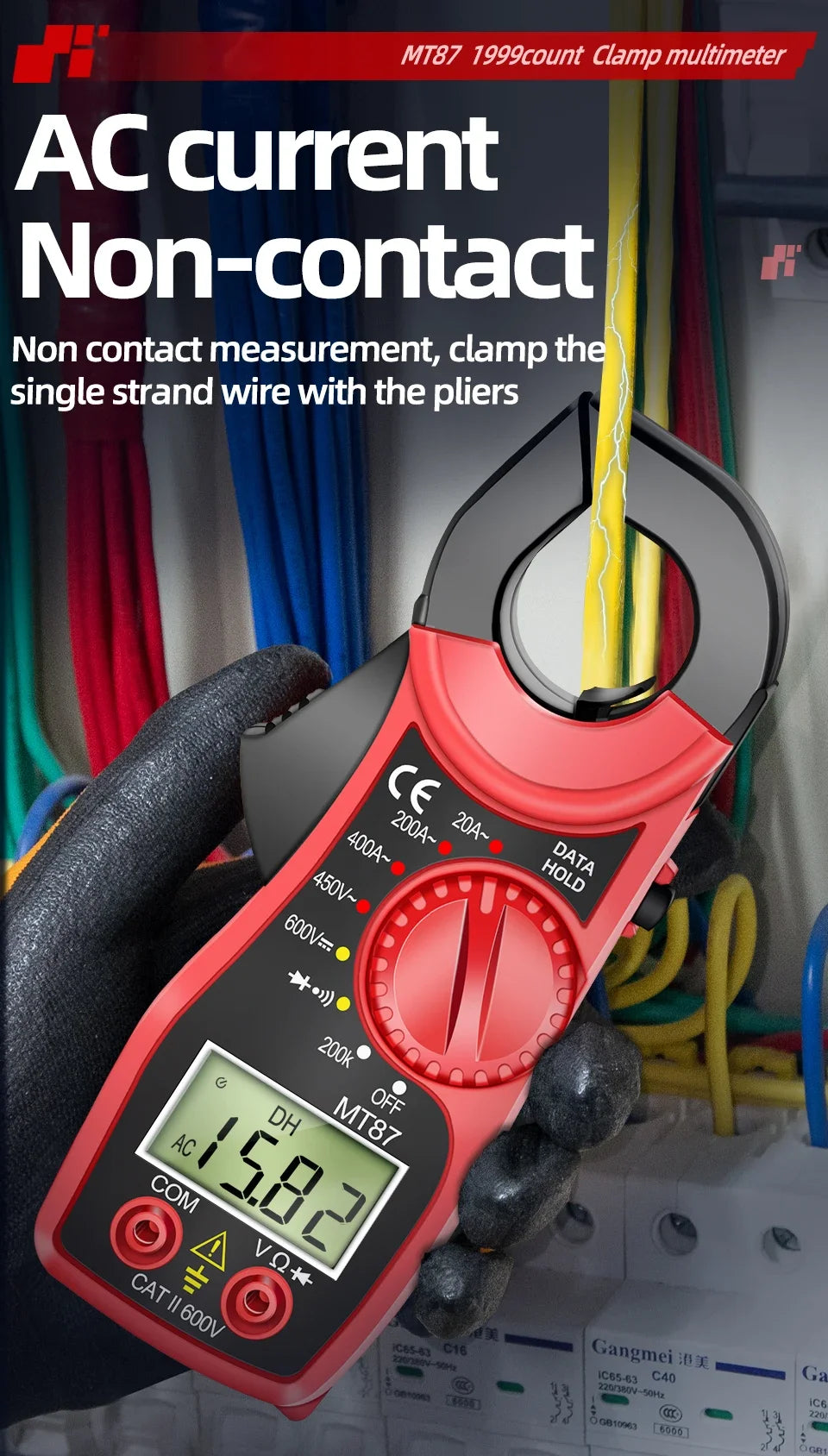

AC Current: 0.01A-400A
AC Voltage: 450V
Battery Included: No
Battery Type: AAA 1.5V*2
Brand Name: ANENG
Buzzer: Yes
Certification: None
Choice: yes
DC Voltage: 1V-600V
DIY Supplies: Electrical

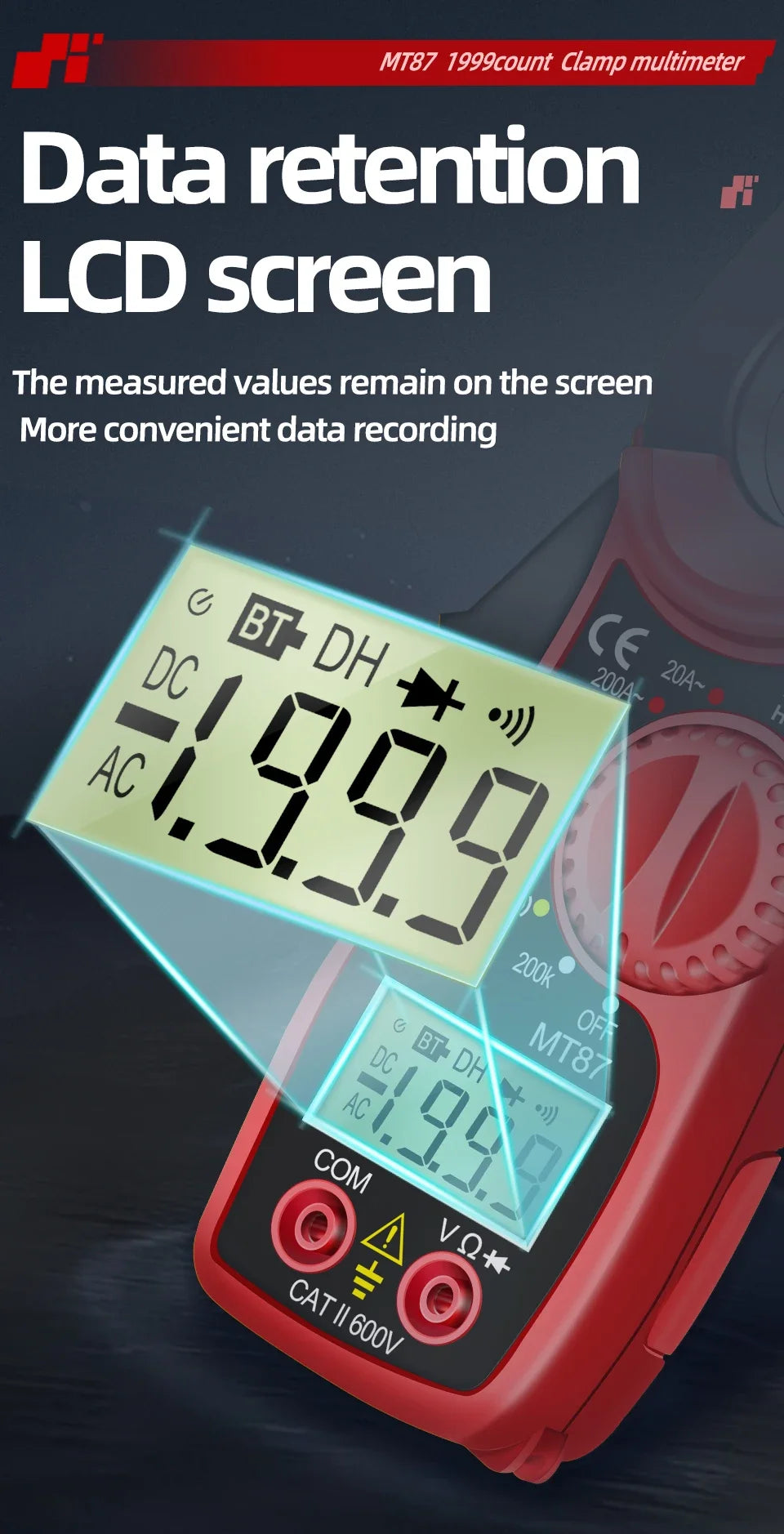

Data Hold: Yes

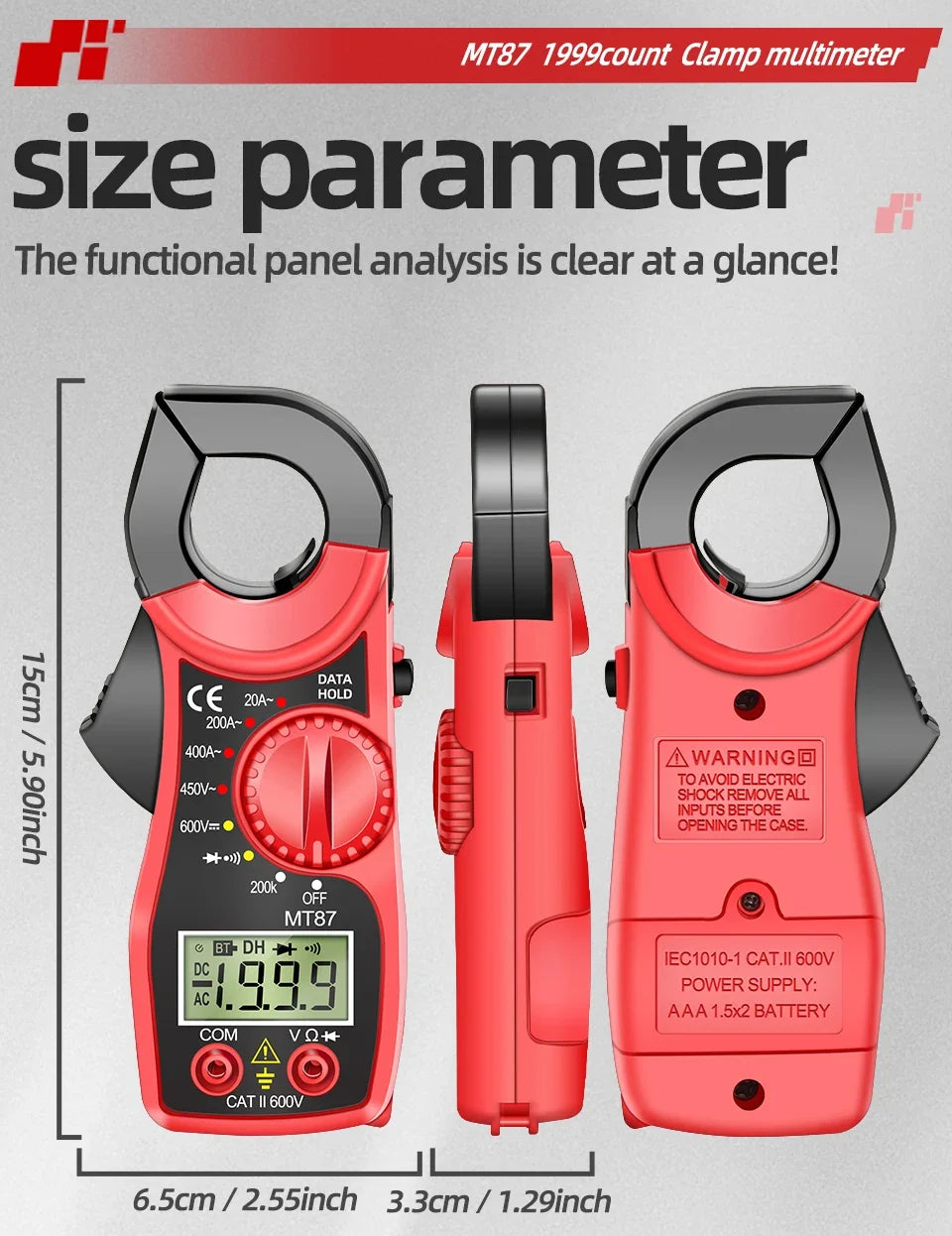

Dimensions: /
Diode: Yes
Display: LCD 1999 Counts
Display Type: Digital Display
HD Screen: Yes
High-concerned chemical: None
Measuring Capacitance Range: /
Measuring Resistance Range: 200K
Model Number: ANENG MT87 Digital Clamp Multimeter
On-off Beef: Yes
Operating Mode: Auto Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
Resistance: Yes

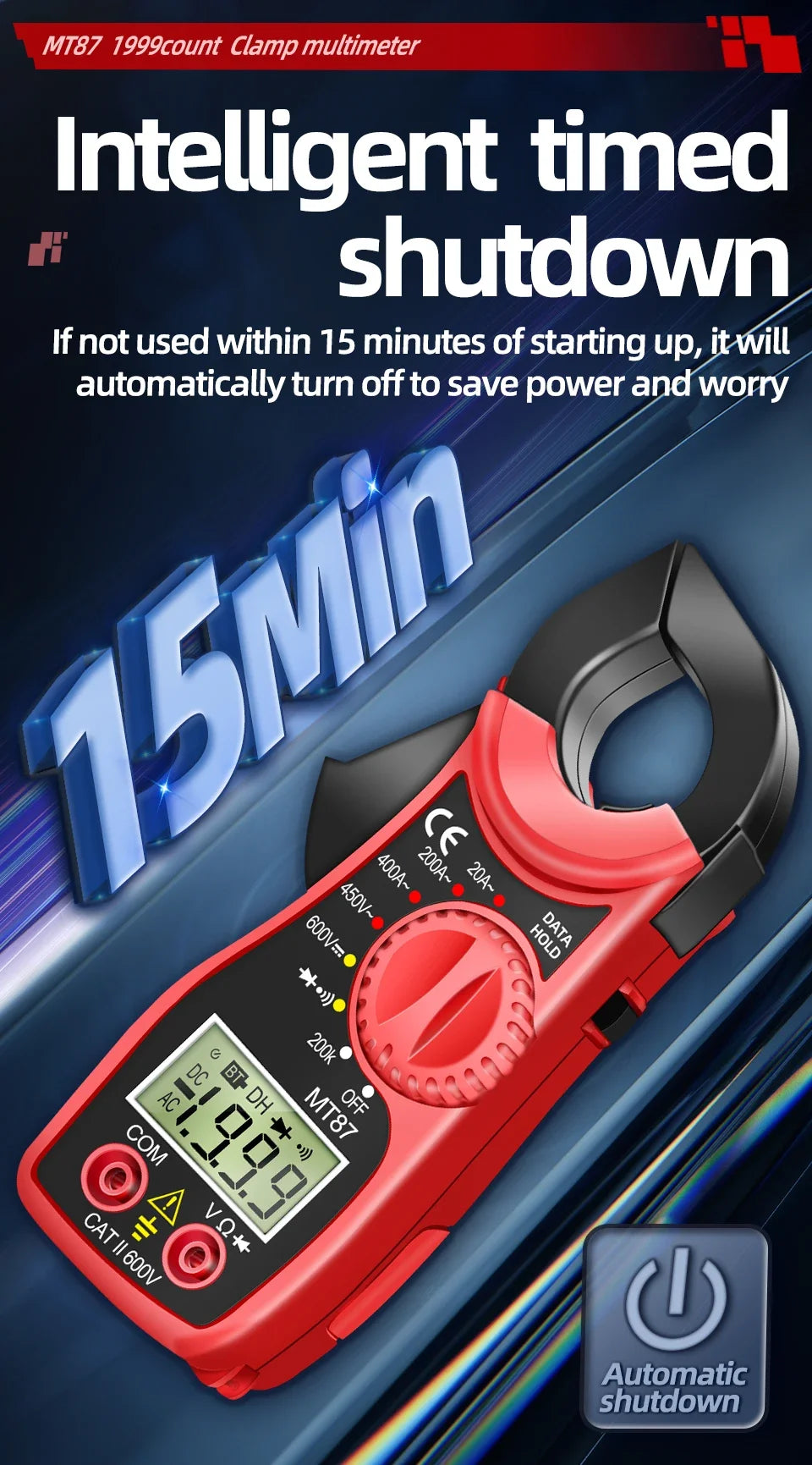

Shut Down: Yes

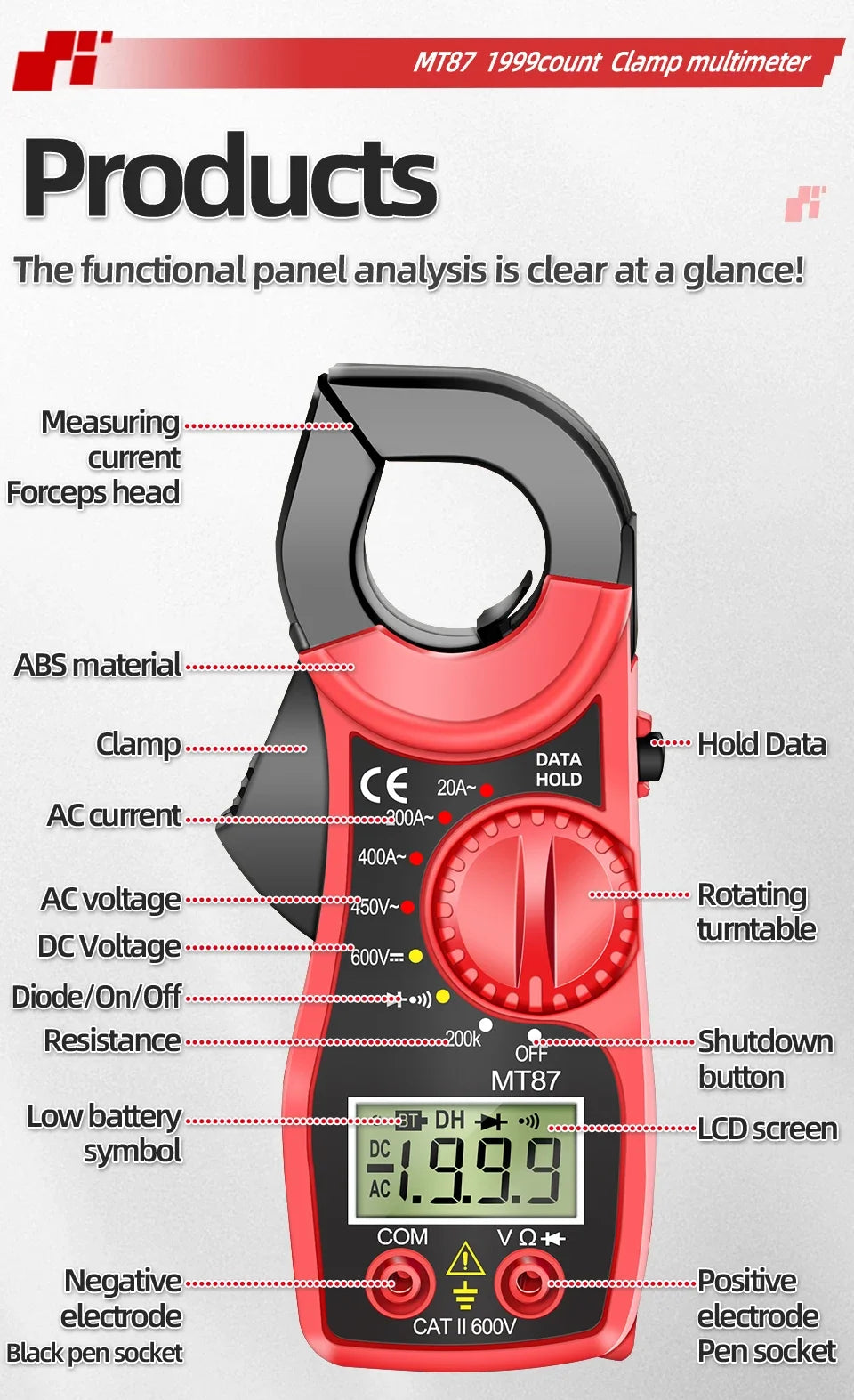

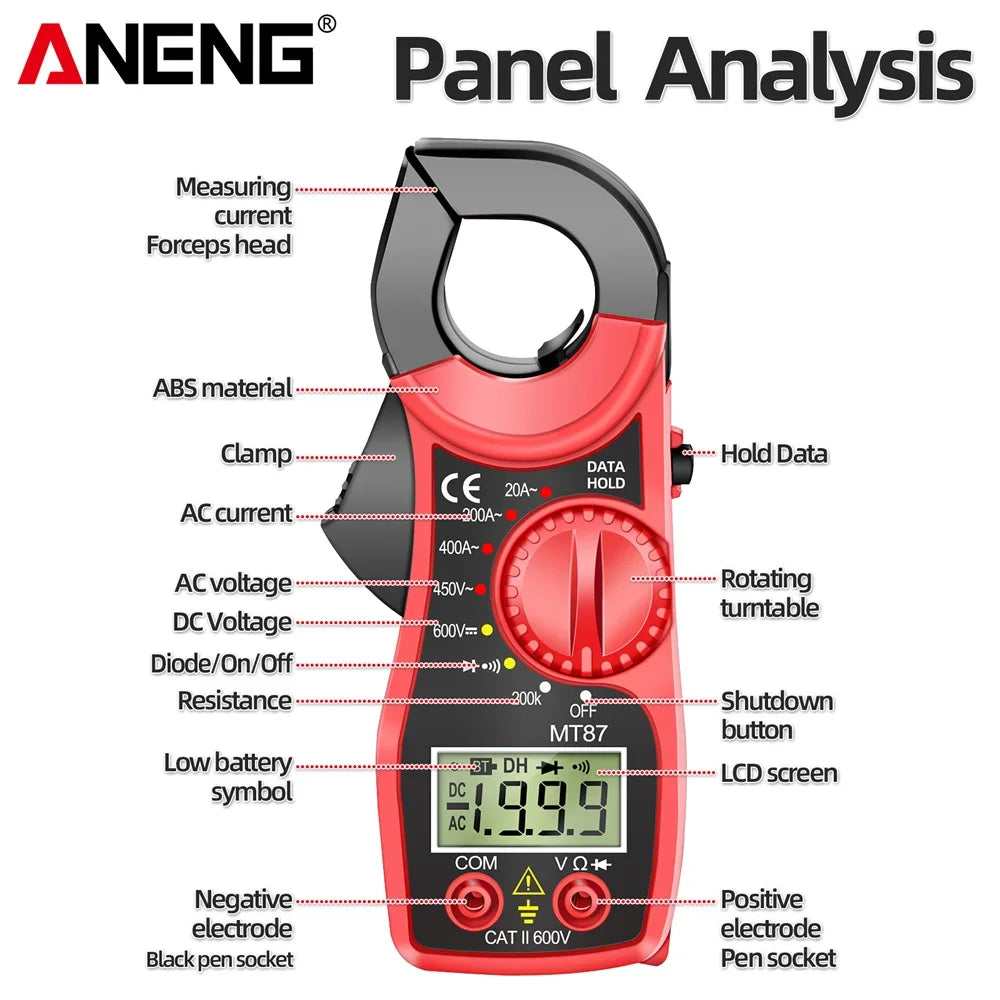

The meter is completely portable,LCD,Digit clamp meter.It has rugged design,is easy to hold in operator's hand and convenient to use.
It is a liquid crystal assembly providing a readbly display in all light conditions.The decimal point is automatically positioned,and the polarity sign(minus) is lighted for the negative DC Measurement.so that the display is directly reading in units selected at the rotary switch.Overrange measurement are indicated by blanking all but the MSD,decimal point,and polarity sign(if negative).In addition the display includes a low battery is indication,if low battery is indicated,operator should replace the used battery with new one
|

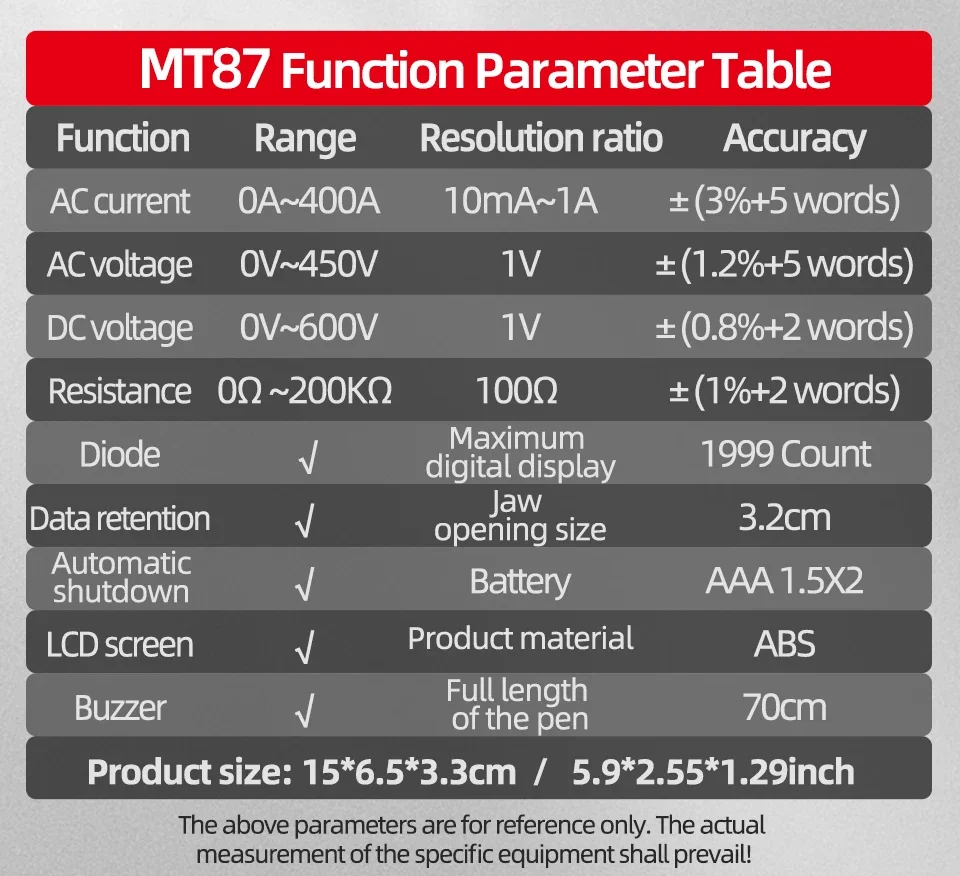

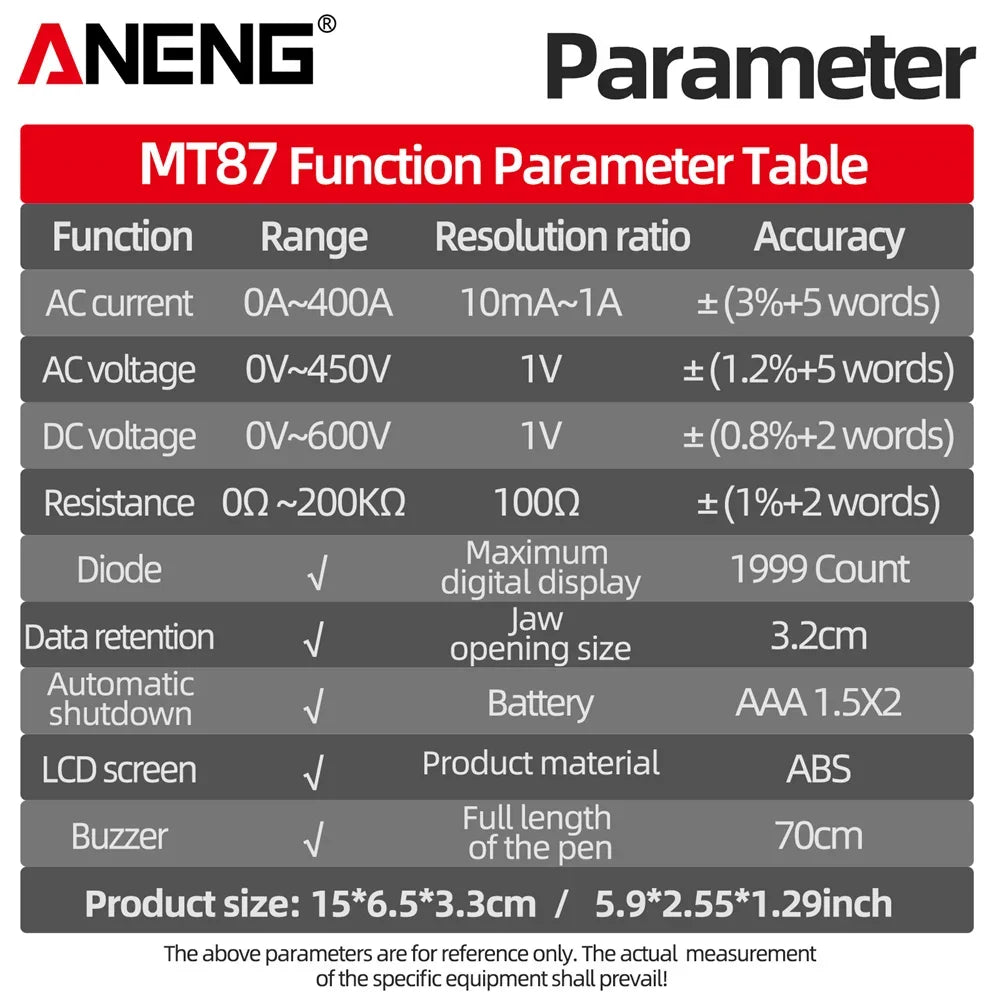

Function |
Range |
Resolution |
Accuracy |
|
AC Current |
20A |
10mA |
+-(3%of reading +5 digits) |
|
200A |
100mA |
+-(2.5%of reading +5 digits) |
|
|
400A |
1A |
+-(3%of reading +5 digits) |
|
|
AC Voltage |
450V |
1V |
+-(2%reading +4 digits) |
|
DC Voltage |
600V |
1V |
+-(1.2%reading +3 digits) |
|
Resistance |
200KΩ |
100Ω |
+-(1.5% of reading +4 digits) |

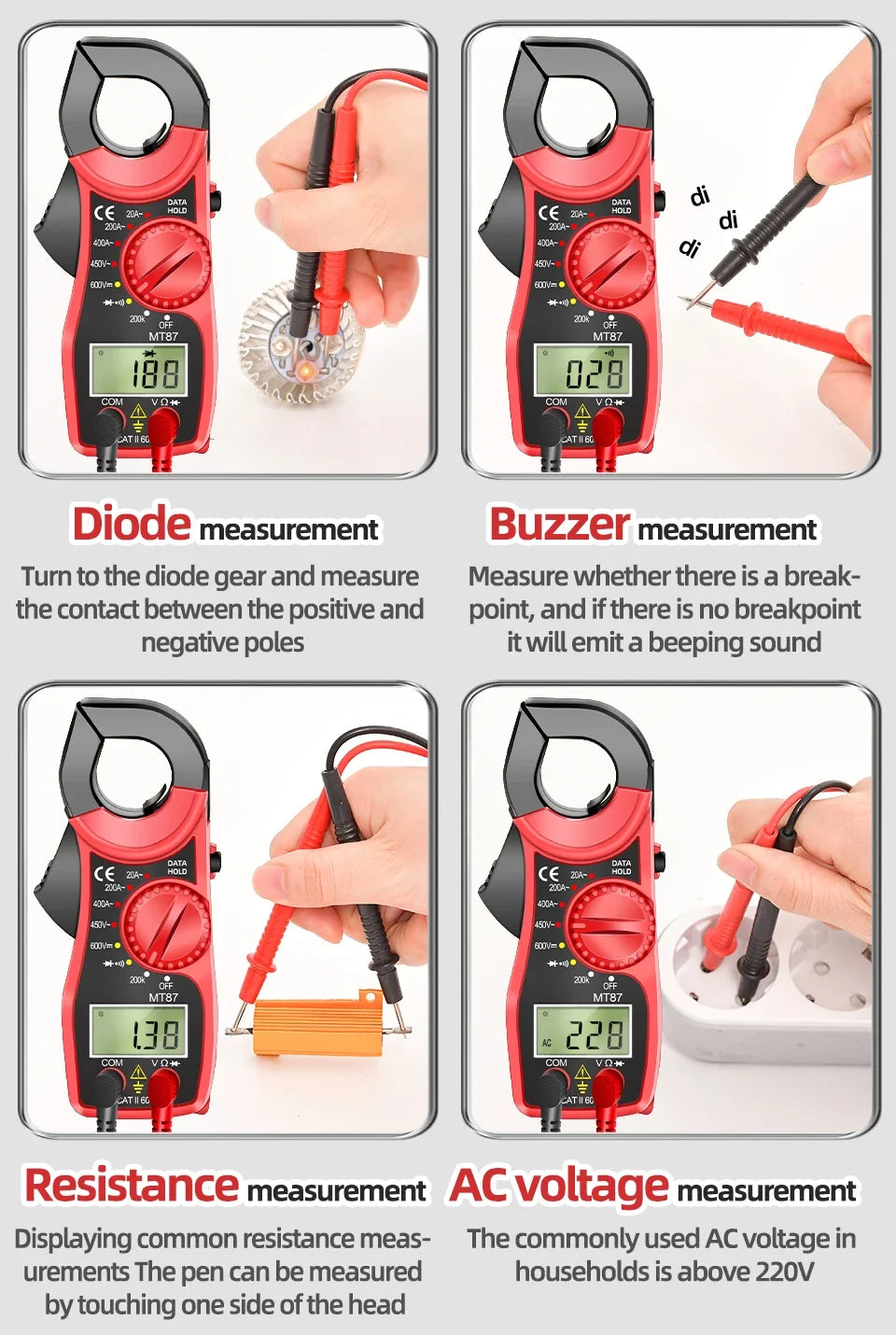

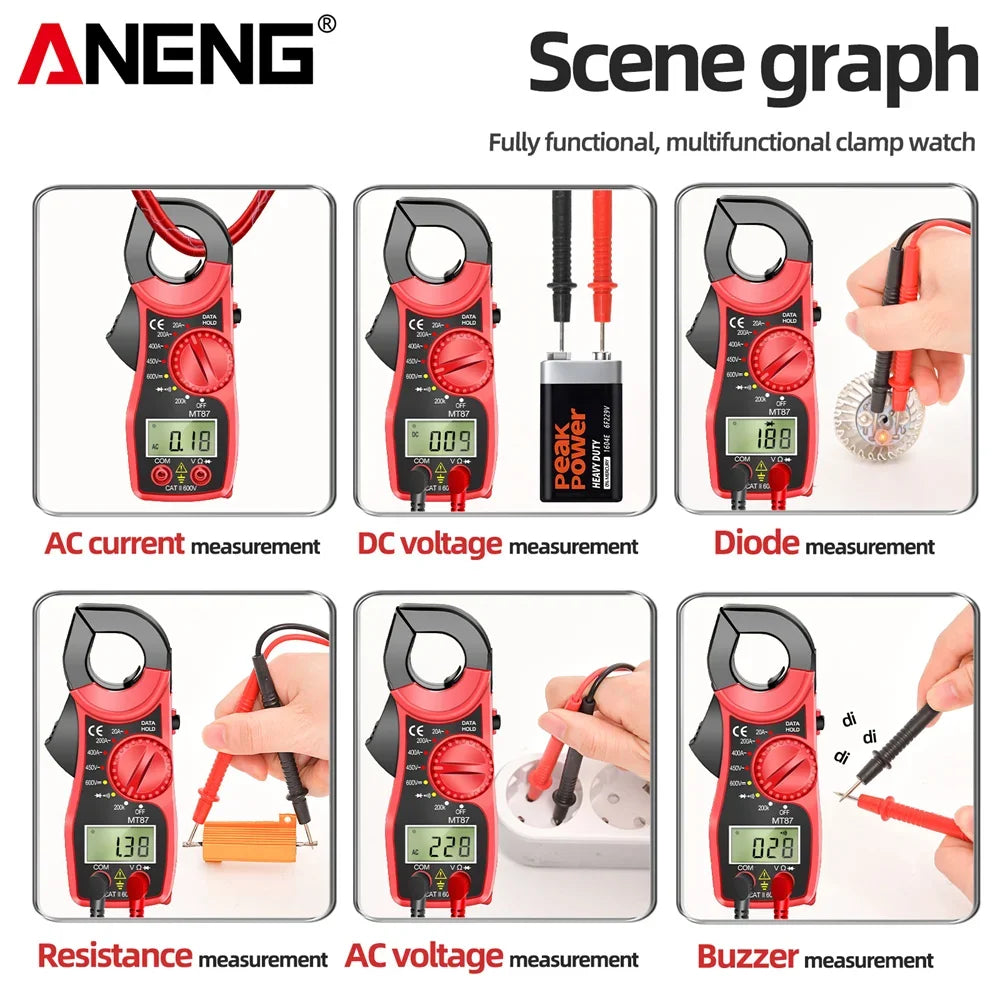

Diode Test,Continuity Test,Buzzer Sound,Overload Protection,Battery Indication
Battery Type:AAA 1.5V*2

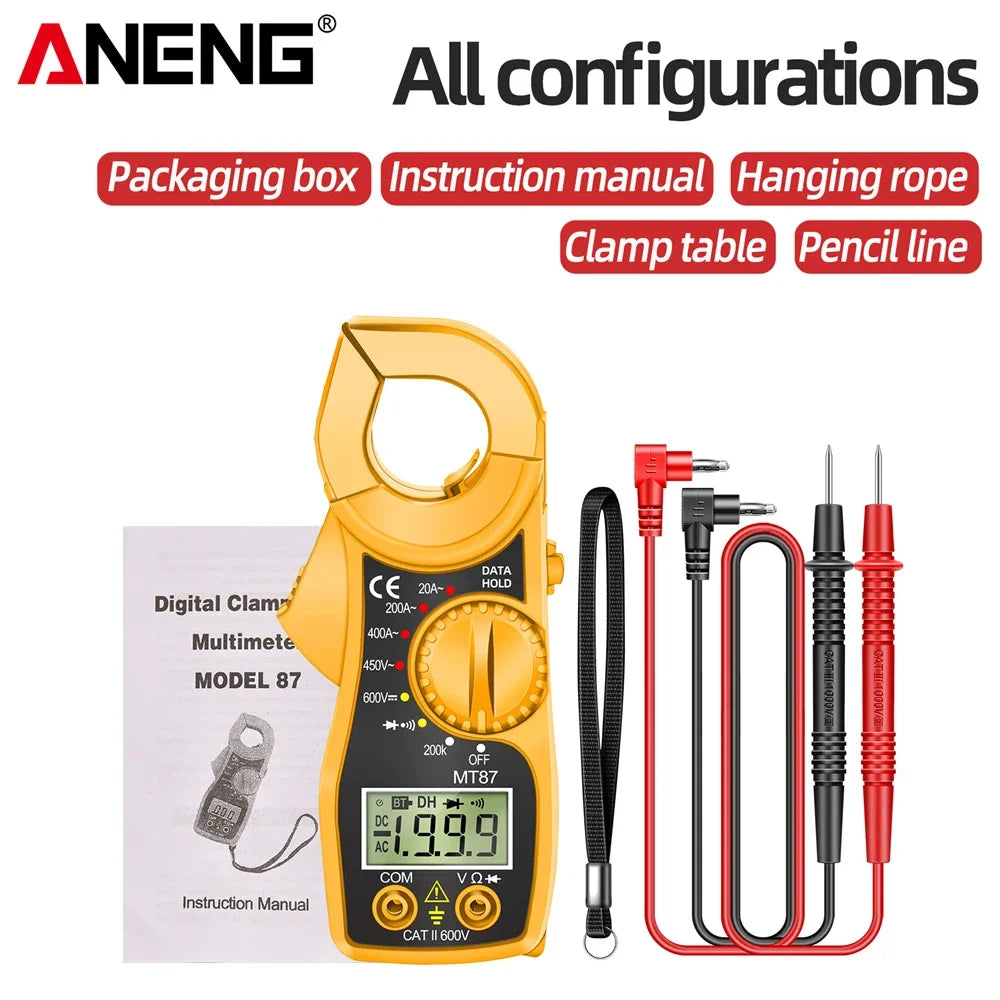

Package Include:
1*clamp meter
1*test lead
1*manual
