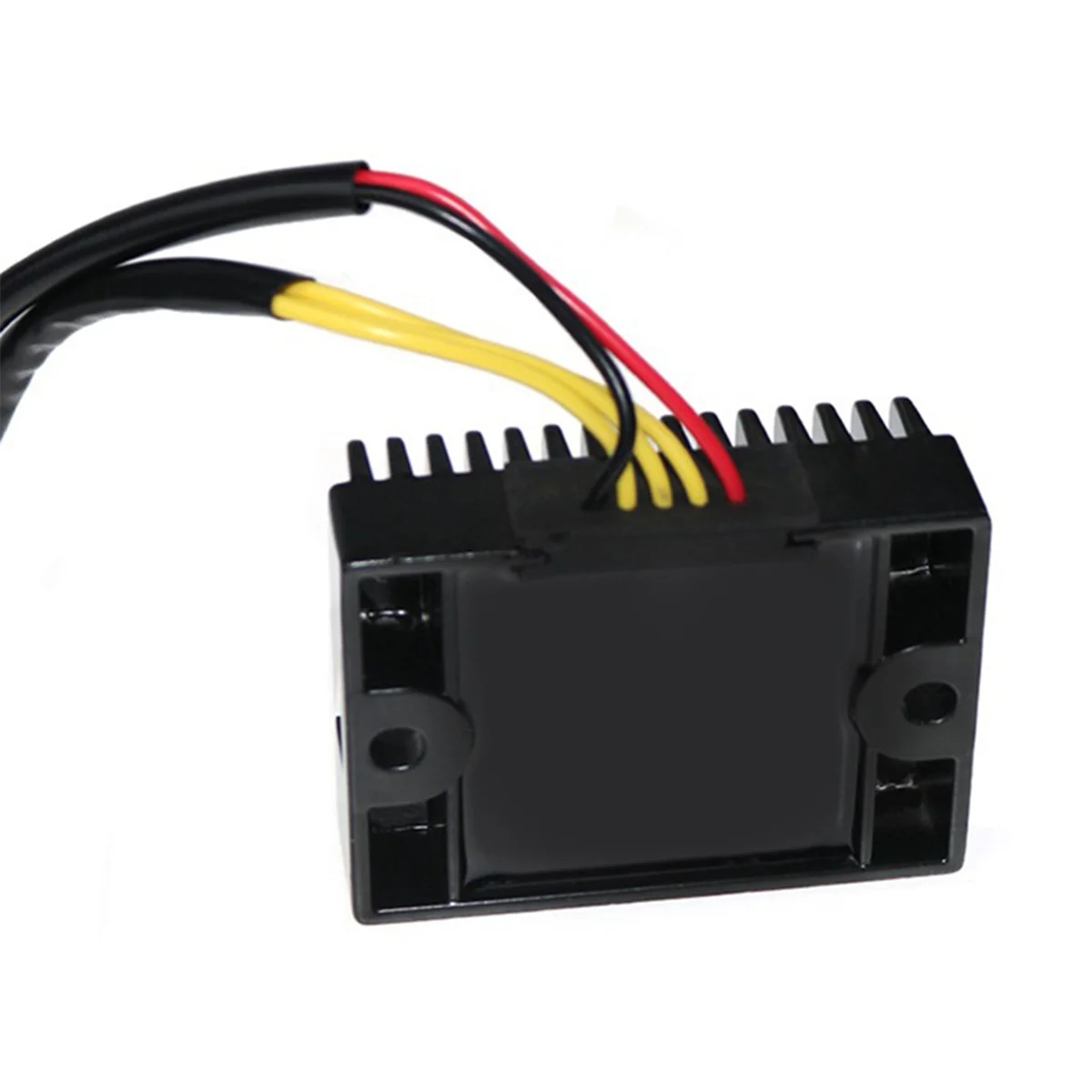

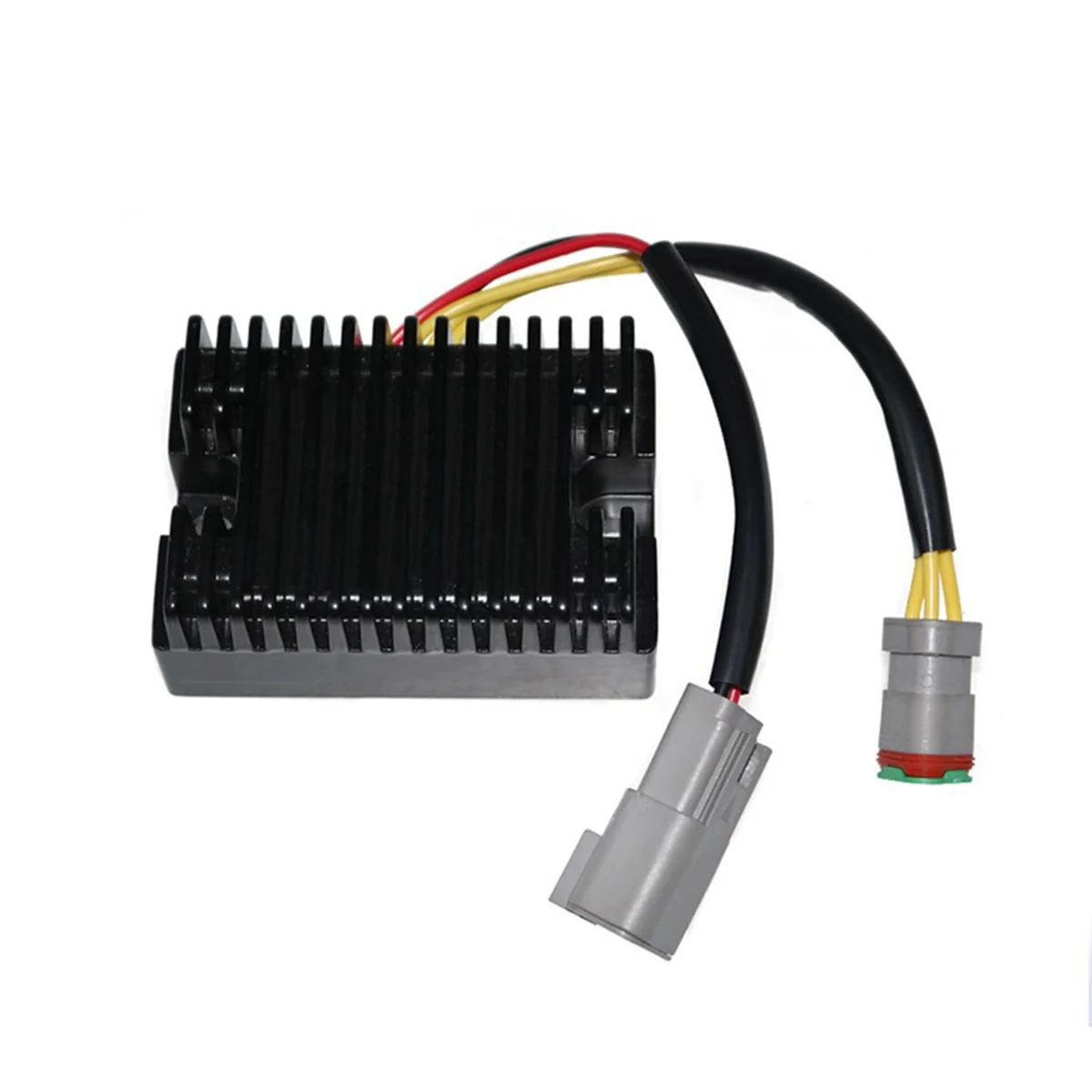

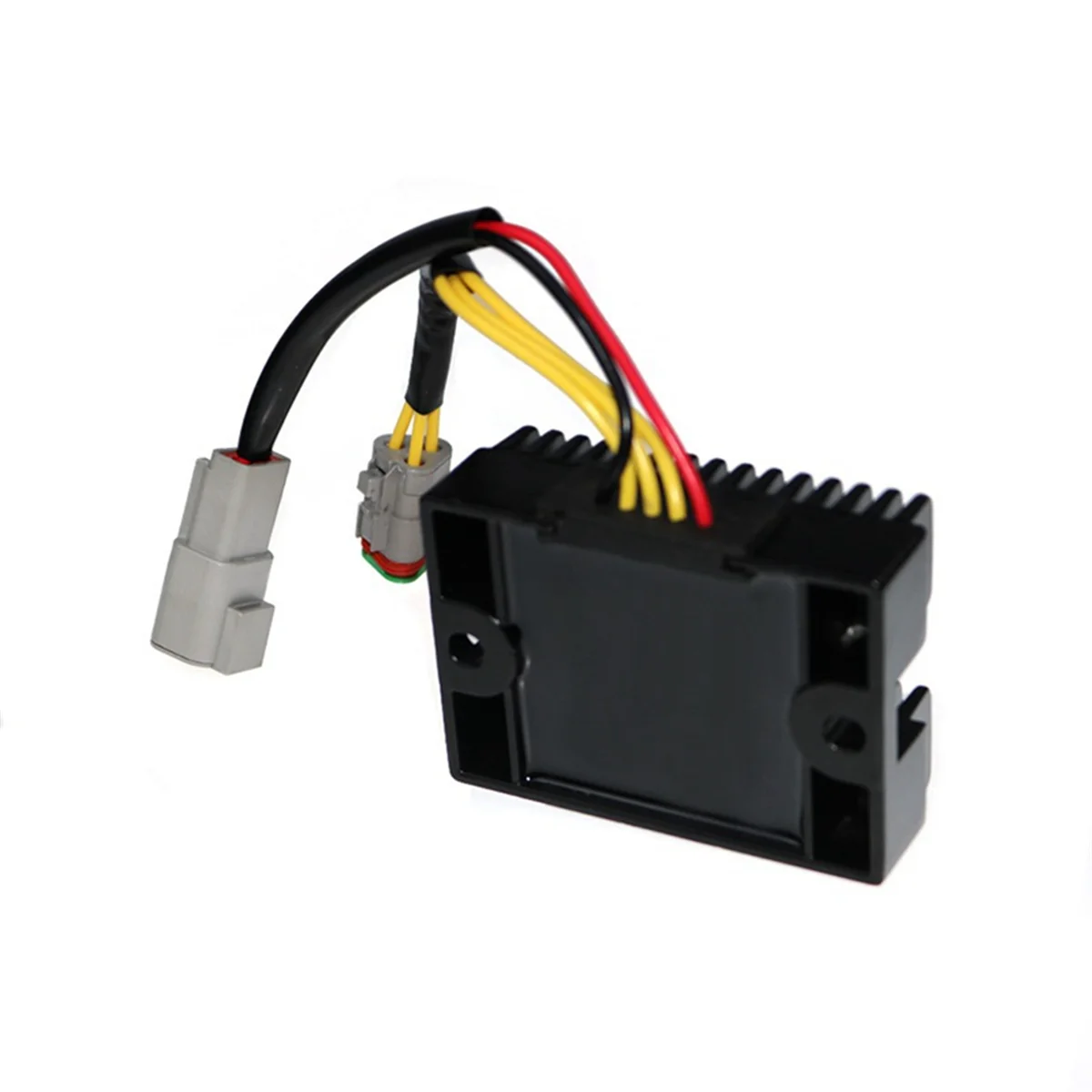

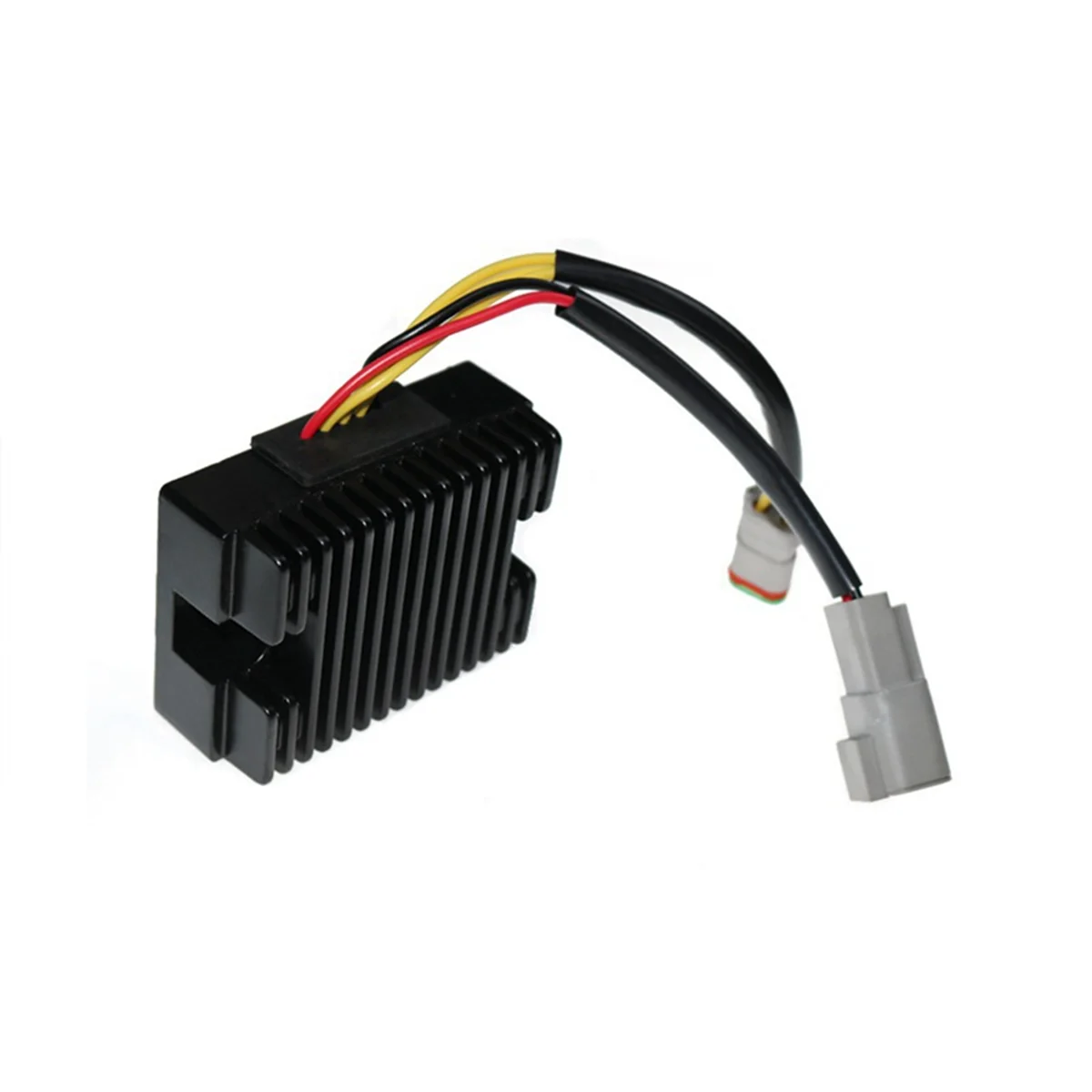

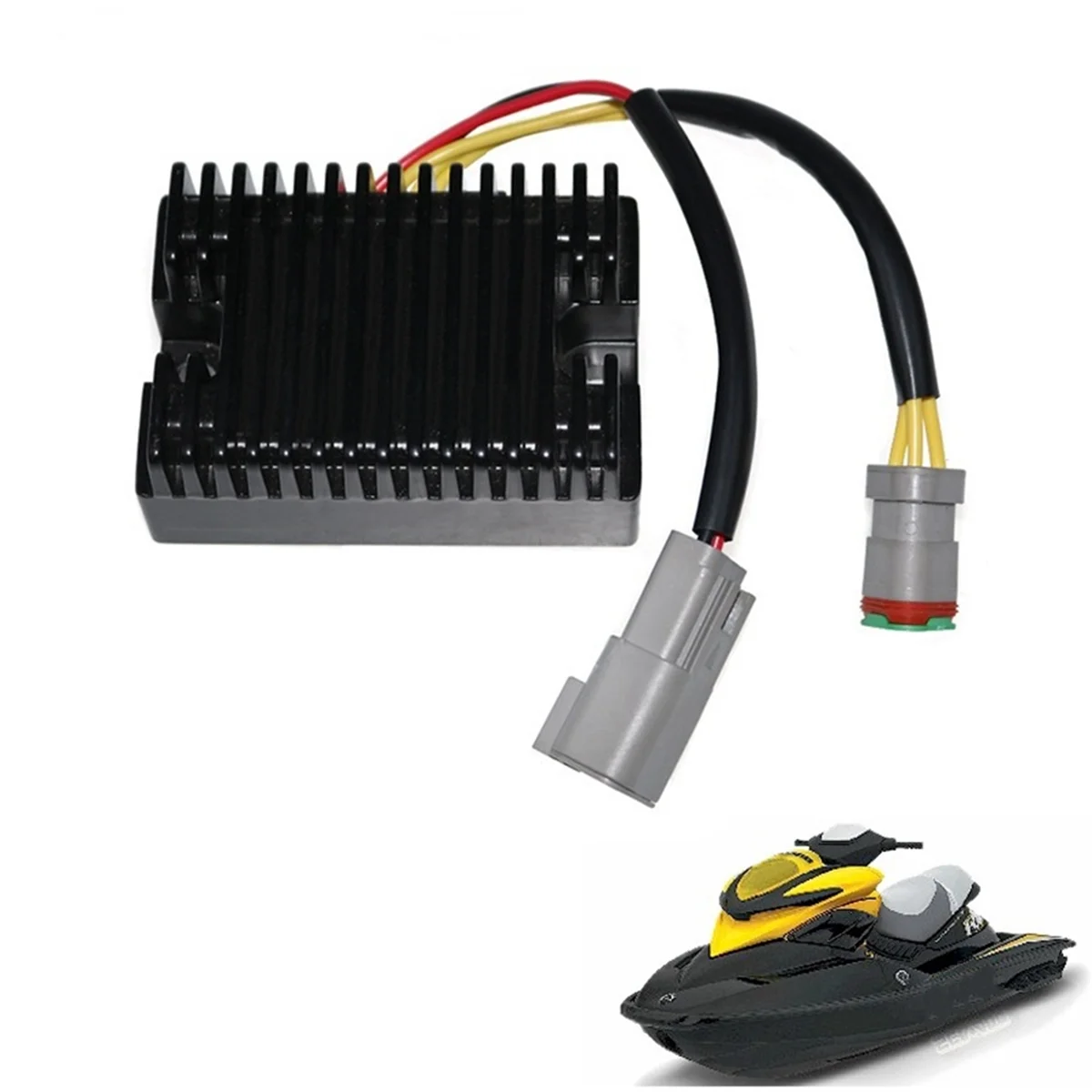

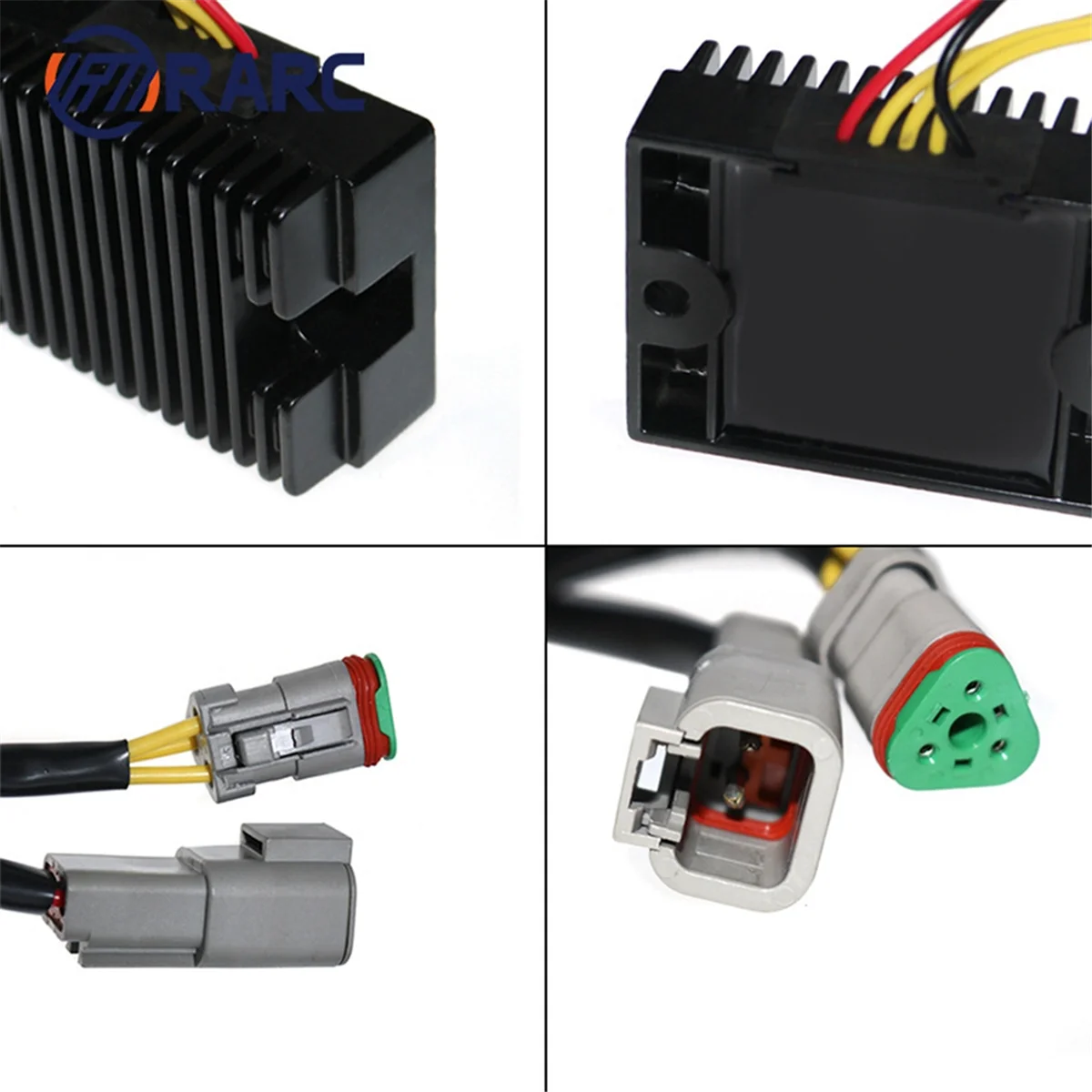

Voltage Regulator Rectifier Sea-Doo 278001969 – RXP RXT GTX 4-Tec

Description

The voltage regulator-rectifier is an essential electronic component of your Sea-Doo's charging system. It regulates the voltage produced by the alternator to protect the battery from overcharging and ensure a stable power supply to all of the jet ski's electrical equipment. This replacement regulator is designed to exactly match the OEM specifications of part numbers 278001969 and 278001581, ensuring a direct, no-modification fit. Made from high-quality aluminum alloy with premium electronic components, it offers optimized heat dissipation for increased reliability in intensive use conditions.

Technical Specifications

• OEM Part Numbers: 278001969 / 278001581
• Type: Voltage Regulator-Rectifier
• Material: Aluminum Alloy
• Condition: New
• Packaging: 1 piece
• Weight: ~402 g
• Regulated Substances: None (compliant)
• Installation: Direct replacement, no modification required

Compatibility

This regulator-rectifier is compatible with the following Sea-Doo models (OEM part numbers: 278001969 / 278001581):

• 2002–2007 – GTX 4-Tec (all models)
• 2003–2007 – GTX Wake
• 2004–2007 – RXP 215
• 2005–2007 – RXT 215
• 2005 – 3D RFI
• 2006–2007 – GTX Wake 215, 3D DI, 3D LE RFI, 3D SE, 3D Rental
• 2006–2007 – Speedster 200, Islandia 220, Utopia 205
• 2007 – RXP 155, GTX Wake 215, Utopia 205 (all models)

⚠️ Always check your serial number (VIN) and original OEM part number before ordering to confirm exact compatibility with your model.

Why Replace the Voltage Regulator-Rectifier?

A faulty regulator-rectifier can lead to chronic overcharging or undercharging of the battery, causing progressive electrical failures and irreversible damage to onboard equipment. Common symptoms of a faulty regulator include:

• Battery no longer charging or discharging quickly
• Unstable or flickering lights or electrical equipment
• Repeated starting difficulties despite a new battery
• Abnormal overheating of the electronic housing

Checking the regulator-rectifier is recommended at the start of each season or as soon as electrical problems appear, in order to prevent a complete breakdown during navigation and protect your Sea-Doo's entire electrical system.
